This autoplot will automatically rearrange individuals according to their id and any grouping variables if an associated 'data' gen_tibble is provided. To avoid any automatic re-sorting of individuals, set arrange_by_group and arrange_by_indiv to FALSE.

Usage

# S3 method for class 'q_matrix'
autoplot(
  object,
  data = NULL,
  annotate_group = TRUE,
  arrange_by_group = TRUE,
  arrange_by_indiv = TRUE,
  reorder_within_groups = FALSE,
  ...
)

Arguments

object

A Q matrix object (as returned by q_matrix()).

data

An associated tibble (e.g. a gen_tibble), with the individuals in the same order as the data used to generate the Q matrix (unless the Q matrix has the ids of the individuals as an attribute, as from get_q_matrix()). If the Q matrix has no group information and data is grouped, the groups of data are used.

annotate_group

Boolean determining whether to annotate the plot with the group information

arrange_by_group

Boolean determining whether to arrange the individuals by group. Groups are ordered as by the grouped functions (see dplyr::group_keys()): if the grouping variable in the gen_tibble or the metadata of the gt_admix object is a factor, by the levels of the factor; numbers in numeric order; otherwise alphabetically. With several grouping variables, groups are ordered by the first variable, then by the second, and so on.

arrange_by_indiv

Boolean determining whether to arrange the individuals by their individual id within each group (groups are arranged first if arrange_by_group is TRUE, otherwise they are kept in their current order). This only applies if annotate_group is TRUE and group information is available. If id in the get_tibble or the metadata of the gt_admix object is a factor, it will be ordered by the levels of the factor; else it will be ordered alphabetically.

reorder_within_groups

Boolean determining whether to reorder the individuals within each group based on their ancestry proportion (note that this is not advised if you are making multiple plots, as you would get a different order for each plot!). Groups keep the order set by arrange_by_group. If TRUE, annotate_group must also be TRUE.

...

not currently used.

Value

a barplot of individuals, coloured by ancestry proportion

Examples

# Read example gt_admix obejct
admix_obj <-
  readRDS(system.file("extdata", "anolis", "anole_adm_k3.rds",
    package = "tidypopgen"
  ))

# Extract a Q matrix
q_mat_k3 <- get_q_matrix(admix_obj, k = 3, run = 1)

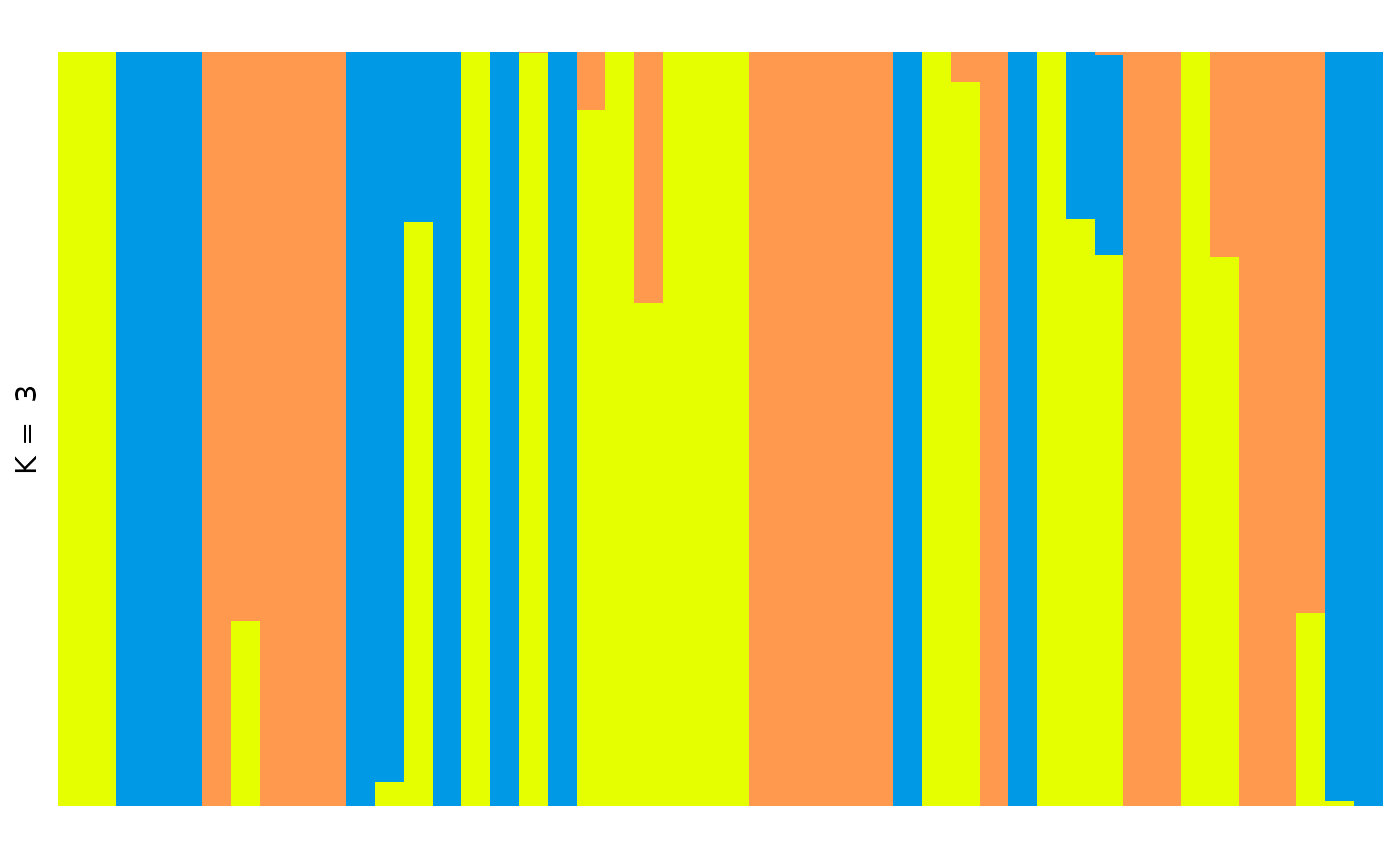

# Basic autoplot
autoplot(q_mat_k3, annotate_group = FALSE, arrange_by_group = FALSE)

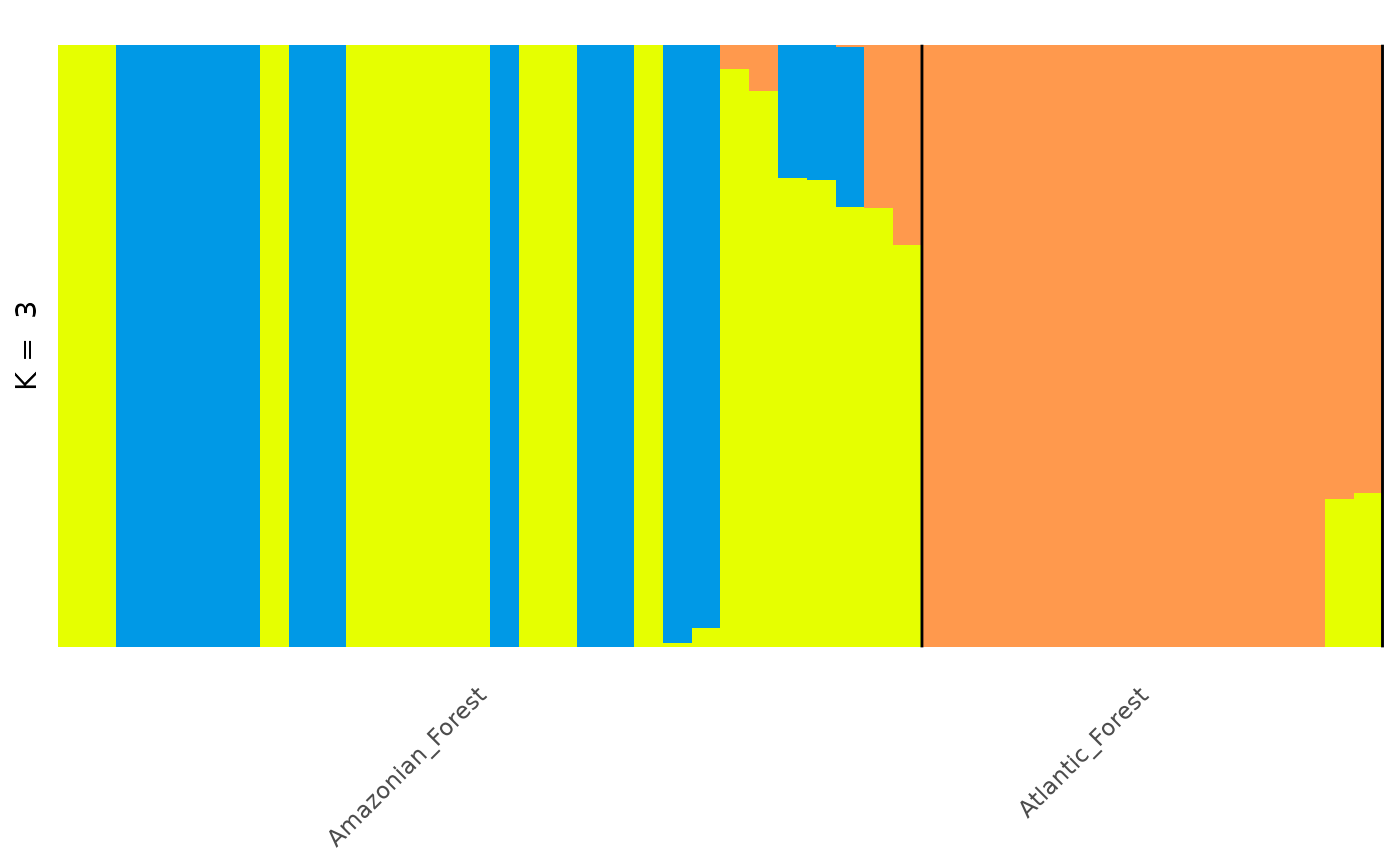

# To arrange individuals by group and by Q proportion
autoplot(q_mat_k3,
  annotate_group = TRUE, arrange_by_group = TRUE,
  arrange_by_indiv = TRUE, reorder_within_groups = TRUE
)
