Projection of aDNA samples onto modern PCA

The following article shows how to project ancient DNA data onto modern data in a Principal Components Analysis using the tidypopgen package.

The example uses the data from Lazaridis et al. (2016). After downloading the data in PACKEDANCESTRYMAP format files, we convert them into gen_tibble objects. This vignette replicates the workflow illustrated in the vignette for the R package smartsnp, but works directly on gen_tibbles.

First, we can download the data from the Reich lab website.

Download the data

temp_dir <- tempdir()
# Download file using R's download.file function
download_url <- "https://reich.hms.harvard.edu/sites/reich.hms.harvard.edu/files/inline-files/NearEastPublic.tar.gz"
download_path <- file.path(temp_dir, "NearEastPublic.tar.gz")
download.file(download_url, download_path, mode = "wb")

We can then move and extract our data into a folder called data/.

+# Create data directory
if (!dir.exists("data")) dir.create("data")
if (!dir.exists("data/NearEastPublic")) dir.create("data/NearEastPublic")
# Copy downloaded file
file.copy(download_path, "data/NearEastPublic.tar.gz")
# Extract using R's untar function
utils::untar("data/NearEastPublic.tar.gz", exdir = "data/NearEastPublic")

Read in the data

Now that our data are downloaded, we can use tidypopgen to read the data into gen_tibble objects, beginning with the modern data:

HO_modern <- gen_tibble("./data/NearEastPublic/HumanOriginsPublic2068.geno",
                        quiet = TRUE,
                        backingfile = tempfile("test_"))

Followed by the ancient data:

ancient <- gen_tibble("./data/NearEastPublic/AncientLazaridis2016.geno",
                      quiet = TRUE,
                      backingfile = tempfile("test_"))

Subset modern data

For our analysis, we will be projecting ancient European individuals, so we only need modern West Eurasian populations. We can select these populations by filtering the gen_tibble object using the filter() function from the dplyr package:

westEurasian_pops <- c(
  "Abkhasian", "Adygei", "Albanian", "Armenian", "Assyrian", "Balkar", "Basque", "BedouinA", "BedouinB", "Belarusian", "Bulgarian", "Canary_Islander",
  "Chechen", "Croatian", "Cypriot", "Czech", "Druze", "English", "Estonian", "Finnish", "French", "Georgian", "German", "Greek", "Hungarian", "Icelandic",
  "Iranian", "Irish", "Irish_Ulster", "Italian_North", "Italian_South", "Jew_Ashkenazi", "Jew_Georgian", "Jew_Iranian", "Jew_Iraqi", "Jew_Libyan", "Jew_Moroccan",
  "Jew_Tunisian", "Jew_Turkish", "Jew_Yemenite", "Jordanian", "Kumyk", "Lebanese_Christian", "Lebanese", "Lebanese_Muslim", "Lezgin", "Lithuanian", "Maltese",
  "Mordovian", "North_Ossetian", "Norwegian", "Orcadian", "Palestinian", "Polish", "Romanian", "Russian", "Sardinian", "Saudi", "Scottish", "Shetlandic", "Sicilian",
  "Sorb", "Spanish_North", "Spanish", "Syrian", "Turkish", "Ukrainian"
)

HO_modern <- HO_modern %>% filter(HO_modern$population %in% westEurasian_pops)

Create Modern PCA

Before we run a PCA on the modern Eurasian individuals, we need to impute any missing genotypes.

As we have subset our gen_tibble object, first we need to update our backingfile to this subset:

HO_modern <- gt_update_backingfile(HO_modern,
                                   quiet = TRUE)

And then we can impute, using:

HO_modern <- gt_impute_simple(HO_modern, method = "mean")

We should also remove any monomorphic loci from our data, as these loci are uninformative. Monomorphic markers must always be removed before a PCA is computed using any of the gt_pca functions.

To do this, we use the select_loci_if function together with loci_maf to select only genotypes where MAF is greater than 0:

HO_modern <- HO_modern %>% select_loci_if(loci_maf(genotypes)>0)

Now we can create our PCA object from the modern data:

pca <- gt_pca_partialSVD(HO_modern, k = 2)

We can then use augment to add the PCA coordinates for each individual to our gen_tibble object:

HO_modern_pca <- augment(x = pca, data = HO_modern, k = 2)

Projection

Before projecting, we remove ancient individuals and outgroups that are not of interest:

# Samples to remove:
sample.rem <- c("Mota", "Denisovan", "Chimp", "Mbuti.DG", "Altai",
               "Vi_merge", "Clovis", "Kennewick", "Chuvash", "Ust_Ishim",
               "AG2", "MA1", "MezE", "hg19ref", "Kostenki14")

ancient <- ancient %>% filter(!ancient$population %in% sample.rem)

And now we can project our data using the predict function:

predicted <- predict(object = pca, new_data = ancient, project_method = "least_squares")

Here, we use the “least_squares” argument to generate a least squares projection that will be comparable to the approach used in smartpca (also implemented in the R package smartsnp).

Finally, we can tidy up our data ready to plot by converting the predicted object to a data frame and adding the population names:

predicted <- as.data.frame(predicted)
predicted$id <- ancient$id
predicted$population <- ancient$population

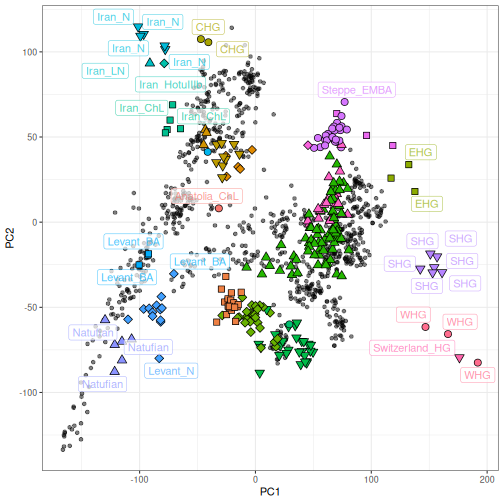

Result

The PCA and predicted individuals can then be visualized using ggplot2 by layering a geom of ancient individuals over modern individuals, using the same syntax as smartsnp:

ggplot() +
  geom_point(data = HO_modern_pca, aes(x = .fittedPC1, y = .fittedPC2), alpha=0.5) +
  geom_point(data = predicted, aes(.PC1,.PC2, fill=population, shape=population), size=3) +
  scale_shape_manual(values=rep(21:25, 100)) +
  geom_label_repel(data = predicted, aes(.PC1,.PC2, label=population, col=population), alpha=0.7, segment.color="NA") +
  theme_bw() + theme(legend.position = "none")+
  labs(x = "PC1", y = "PC2")

## Warning: ggrepel: 247 unlabeled data points (too many overlaps). Consider increasing max.overlaps
