Making custom grids in geoGraph

2026-09-07

This vignette illustrates how to create custom gGraph objects in geoGraph and how to assign environmental information to the nodes of the graph. The gGraph objects can either be constructed using a square grid or using a discrete global grid. The latter is especially useful when working over larger areas of the world, where the square grid would introduce messy distortions. Using the dggridR package, we can create a custom hexagonal grids that provides a more accurate representation of the Earth’s surface.

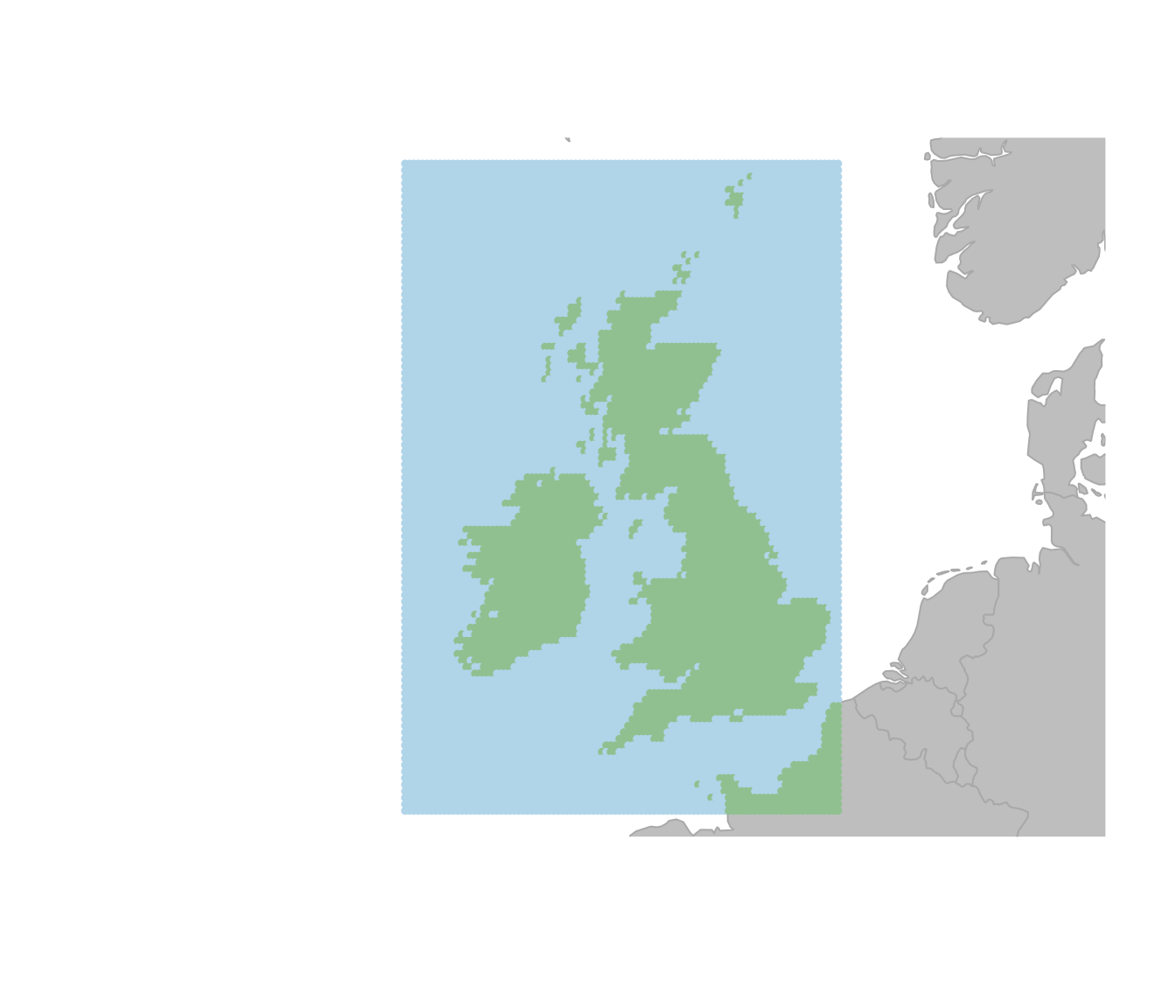

Creating a custom square grid

We can create a custom square grid using the makeSquareGrid function. This function allows us to specify the approximate number of the grid cells and the geographic bounding box for the area of interest (by setting the range for both the latitude and longitude of the grid) . In this example, we create a grid with about 10’000 cells that covers the area of Great Britain. We can then use the findLand function to identify which cells in the grid correspond to land and which correspond to sea, and we can visualize the resulting graph using the plot function.

squareGraph <- makeSquareGrid(
  size      = 10000,
  lon.range = c(-12, 2),
  lat.range = c(49, 61)
)
squareGraph <- findLand(squareGraph)
colors <- data.frame(
  habitat = c("sea", "land"),
  color = c("#b0d4e8", "#90c090")
)

squareGraph <- setColors(squareGraph, colors)
plot(squareGraph, reset = TRUE)

Creating a custom hexagonal grid

Now as mentioned above, using a square grid is fine for small scale analyses but can introduce distortions when working over larger areas of the world. To avoid this, we can use the makeHexGrid function to create a hexagonal grid that provides a more accurate representation of the Earth’s surface. In makeHexGrid we need to specify the geographic bounding box for our area of interest and set the spacing between the center of adjacent cells in kilometers. The function will then determine an appropriate grid resolution based on this spacing. Be aware that using a small spacing will result in a very large graph object, which can be computationally intensive to work with. In this example, we create a hexagonal grid with a spacing of about 30km that covers the area of western Europe and parts of Northern Africa.

# define the area of interest (Europe)
area.of.interest <- st_as_sfc(
  st_bbox(c(
    xmin = -15,
    xmax = 32,
    ymin = 30,
    ymax = 50
  ), crs = 4326)
)

aoi.bound <- st_sf(geometry = area.of.interest)

hexGraph <- makeHexGrid(geo.box = aoi.bound, spacing = 30)

## Resolution: 10, Area (km^2): 863.800609195903, Spacing (km): 29.0273762609499, CLS (km): 33.1636203580006

hexGraph <- findLand(hexGraph)

colors <- data.frame(
  habitat = c("sea", "land"),
  color = c("#b0d4e8", "#90c090")
)

hexGraph <- setColors(hexGraph, colors)

plot(hexGraph, reset = TRUE)

We can get more information about the graph object we just created by looking at the summary of the graph, which provides information about the number of nodes and edges in the graph, as well as the already existing attributes.

hexGraph

##
## === gGraph object ===
##
## @coords: spatial coordinates of 10480 nodes
##      lon   lat
## 1 -14.99 50.07
## 2 -14.60 50.07
## 3 -14.22 50.08
## ...
##
## @nodes.attr: 1 nodes attributes
##   habitat
## 1     sea
## 2     sea
## 3     sea
## ...
##
## @meta: list of meta information with 1 items
## [1] "$colors"
##
## @graph:
## A graphNEL graph with undirected edges
## Number of Nodes = 10480
## Number of Edges = 31021

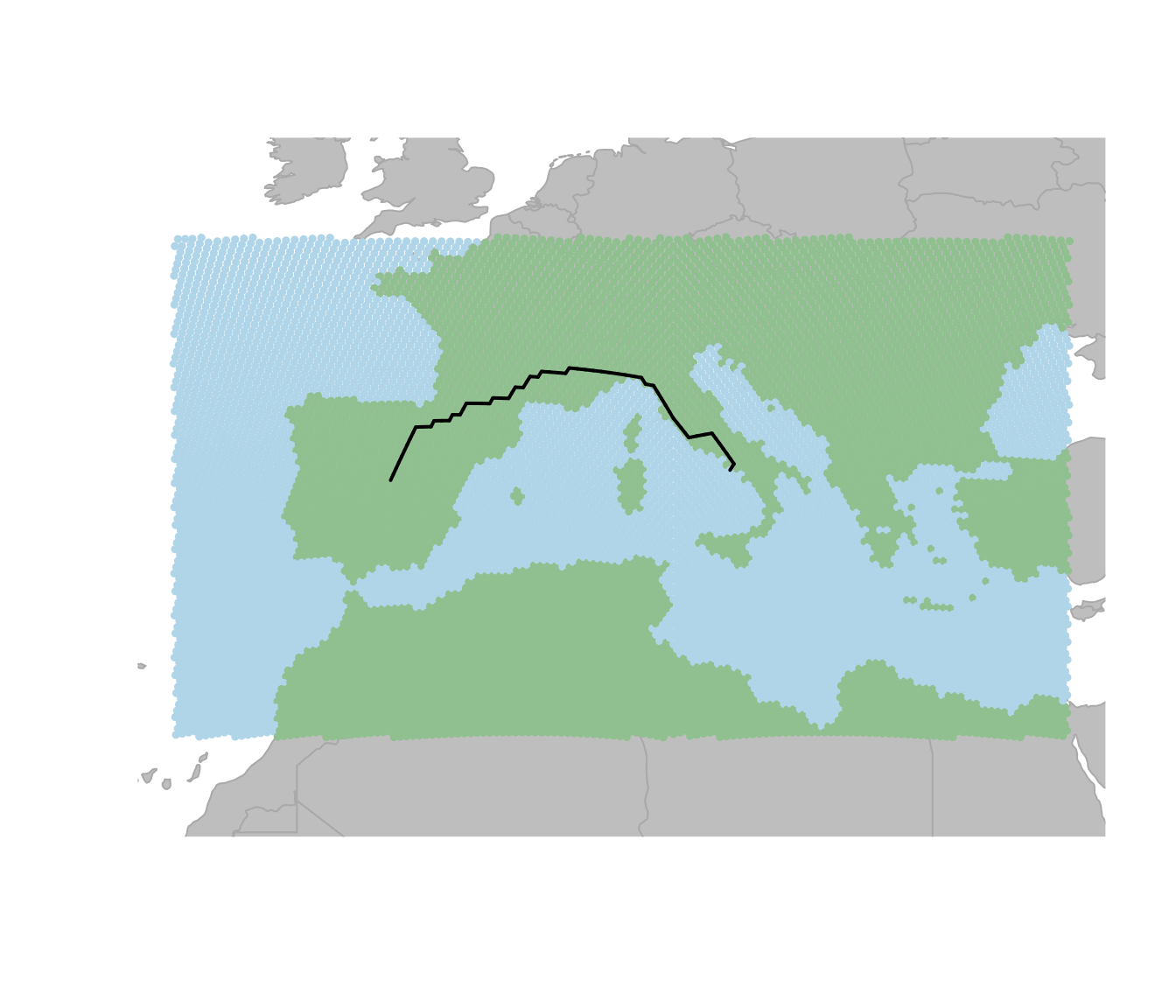

Setting costs for the different habitat types

Now we can also set the costs for moving through different habitat types based on their classification. Note that the cost here is arbitrary and can be adjusted based on the specific context of the analysis and the species or features being studied. Costs are inversely related to the ease of movement through a cell, so higher costs indicate more difficult terrain. For example, we can assign a cost of 10 for moving through sea cells and a cost of 1 for moving through land cells. If we now look at the least cost path between two cities (Madrid and Naples) using the dijkstraBetween function, we can see that the path tends to avoid sea cells and prefers to move through land cells.

# set the costs for sea cells to 10 and land cells to 1
cost.rules <- data.frame(
  habitat = c("sea", "land"),
  cost = c(10, 1)
)

hexGraph <- setCosts(hexGraph, method = "mean", attr.name = "habitat", cost.rules = cost.rules)


point1 <- c(-3.7038, 40.4168) # Madrid
point2 <- c(14.2681, 40.8522) # Naples
cities.dat <- rbind.data.frame(point1, point2)
colnames(cities.dat) <- c("lon", "lat")
row.names(cities.dat) <- c("Madrid", "Naples")
cities <- new("gData", coords = cities.dat[, 1:2], gGraph.name = "hexGraph")
path <- dijkstraBetween(cities)
plot(hexGraph, reset = TRUE)
plot(path, col = "black", lwd = 2)

Adding the topographical data

The gGraph object that we have so far is already great for basic analyses of connectivity across the landscape, but we can also think of more information to add to the graph, such as topographical data. This data often comes in the form of raster layers, which can be assigned to the nodes of the graph. This allows us to incorporate information about the terrain into our connectivity analyses, which can be important for understanding movement patterns and dispersal across landscapes. To get the raster data for our example we can use the get_elev_raster function from the elevatr package. The function takes a spatial object (in this case, the bounding box of our area of interest) and returns a raster layer with elevation values. We can then convert this raster layer into a SpatRaster object using the rast function from the terra package, which allows us to work with it in geoGraph.

elevation.data <- get_elev_raster(
  locations = aoi.bound,
  z = 3,
  clip = "locations"
)

# convert to SpatRaster
spatr <- rast(elevation.data)

Assigning elevation data to graph nodes

In the next step we can use the assignByRaster function to add the elevation data to the nodes of the graph. The function takes all the raster values that fall within each cell, summarizes them using a function specified by the fun argument, and assigns the result as a new node attribute. Here we use fun = "sd" to compute the standard deviation of elevation values within each cell, which gives us an idea of the terrain variability. Cells with high standard deviation typically correspond to rugged mountainous areas and are more costly to traverse. We can then visualize the distribution of these values for land cells using a density plot.

hexGraph <- assignByRaster(graph = hexGraph, raster = spatr, layer.name = "elevation", fun = "sd")

# have a look at the distribution of sd.elevation values for land cells
sd.ele <- getNodesAttr(hexGraph) %>%
  mutate(
    elevation = ifelse(habitat == "land", elevation, NA_real_)
  ) %>%
  pull(elevation)

# plot the density
plot(density(log(sd.ele), na.rm = TRUE),
  main = "Density of SD Elevation for Land Cells",
  xlab = "SD Elevation (m)", ylab = "Density"
)

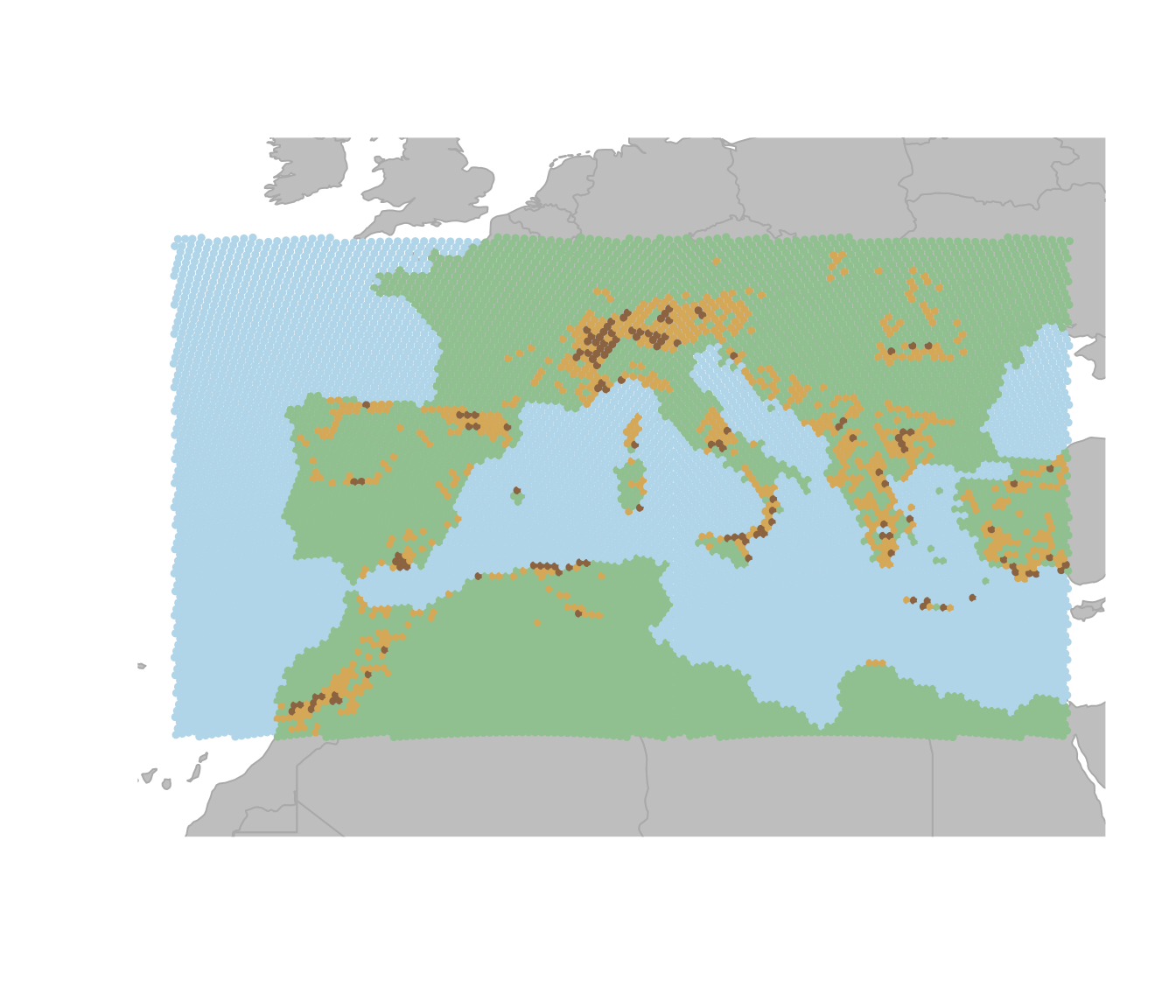

Reclassify the nodes into ‘rugged’ and ‘very rugged’

Looking at the distribution of the standard deviation of elevation values for land cells, we can see that there are some cells with very high variability in elevation, which likely correspond to mountainous areas. We can then reclassify the nodes into ‘rugged’ and ‘very rugged’ based on an elevation threshold. Here we pick arbitrary thresholds for the standard deviation of elevation values to classify cells as ‘rugged’ and ‘very rugged’. Cells with a standard deviation of elevation greater than 200 are classified as ‘rugged’, while those with a standard deviation greater than 400 are classified as ‘very rugged’. Remember that these values depend on the size of the grid cells. We can then update the habitat attribute in the graph using the setNodesAttr function and visualize the resulting graph with the new habitat classifications.

# set a threshold for rugged cells
rugged.threshold <- 200
very.rugged.threshold <- 400

## now we identify rugged and very rugged cells as those with sd.elevation > threshold
node.attr <- getNodesAttr(hexGraph)

habitat.new <- dplyr::case_when(
  node.attr$habitat == "sea" ~ "sea",
  is.na(sd.ele) ~ "land",
  sd.ele > very.rugged.threshold ~ "very_rugged",
  sd.ele > rugged.threshold ~ "rugged",
  TRUE ~ "land"
)

# update the habitat attribute in the graph
# reclassify the nodes in the gGraph object accordingly in the metadata
hexGraph <- setNodesAttr(hexGraph, attr.name = "habitat", values = habitat.new)

colors <- data.frame(
  habitat = c("sea", "land", "rugged", "very_rugged"),
  color   = c("#b0d4e8", "#90c090", "#d4a857", "#8b6340")
)

# change colors associated with the land meta info
hexGraph <- setColors(hexGraph, colors)

plot(hexGraph, reset = TRUE)

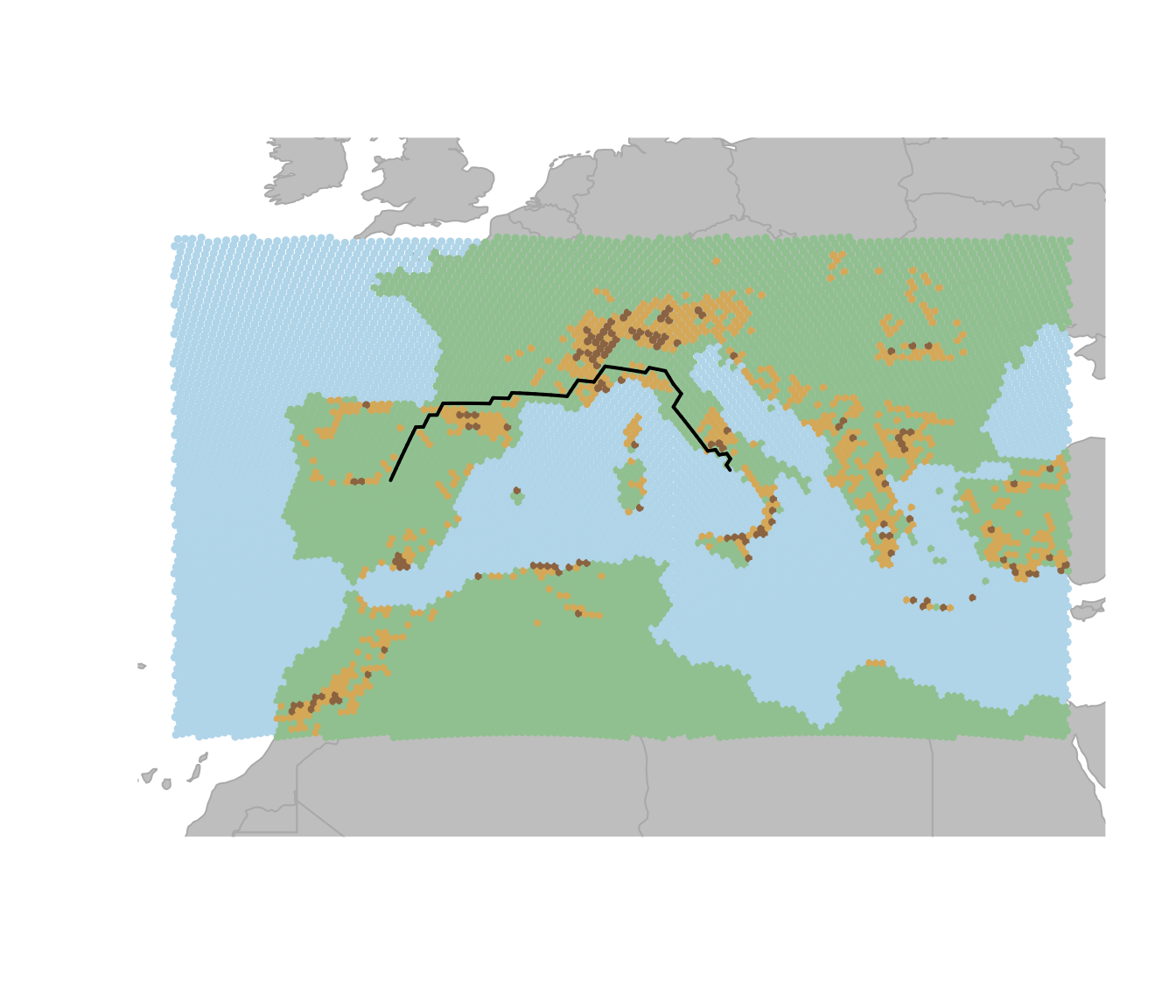

If we set the cost for rugged and very rugged cells to be higher than for land cells, we can see that the least cost paths between different land areas tend to avoid not only sea cells but also rugged and very rugged cells. This can be shown in the same toy example as above.

# set the costs for sea cells to 10, land cells to 1, rugged cells to 3 and very rugged cells to 10
cost.rules <- data.frame(
  habitat = c("sea", "land", "rugged", "very_rugged"),
  cost = c(10, 1, 3, 10)
)

hexGraph <- setCosts(hexGraph, method = "mean", attr.name = "habitat", cost.rules = cost.rules)

path <- dijkstraBetween(cities)
plot(hexGraph, reset = TRUE)
plot(path, col = "black", lwd = 2)

Adding coastal cells

Now lastly one might also want to directly change the habitat classification for certain cells based on their location. For example here we can add a ‘coast’ category for cells that are adjacent to any land based cells. This is done by checking the neighbors of each ‘sea’ cell and reclassifying those that have at least one land or mountain neighbor as ‘coast’.

# get the neighbor list from the graph
neigh.list <- hexGraph@graph@edgeL
node.attr <- getNodesAttr(hexGraph)

# get all nodes adjacent to land or mountain cells and reclassify them as "coast"
for (i.node in seq_len(nrow(node.attr))) {
  if (node.attr$habitat[i.node] == "sea") {
    neighbour.indices <- neigh.list[[i.node]]$edges
    neighbour.land.values <- node.attr$habitat[neighbour.indices]
    if (any(neighbour.land.values %in% c("land", "rugged", "very_rugged"))) {
      # at least one land or mountain neighbour
      node.attr$habitat[i.node] <- "coast"
    }
  }
}

# set the new node attributes
hexGraph <- setNodesAttr(hexGraph, attr.name = "habitat", values = node.attr$habitat)

colors <- data.frame(
  habitat = c("sea", "land", "rugged", "very_rugged", "coast"),
  color   = c("#b0d4e8", "#90c090", "#d4a857", "#8b6340", "#c8e6f5")
)

# change the costs and colors associated with the land meta info
hexGraph <- setColors(hexGraph, colors)
plot(hexGraph, reset = TRUE)

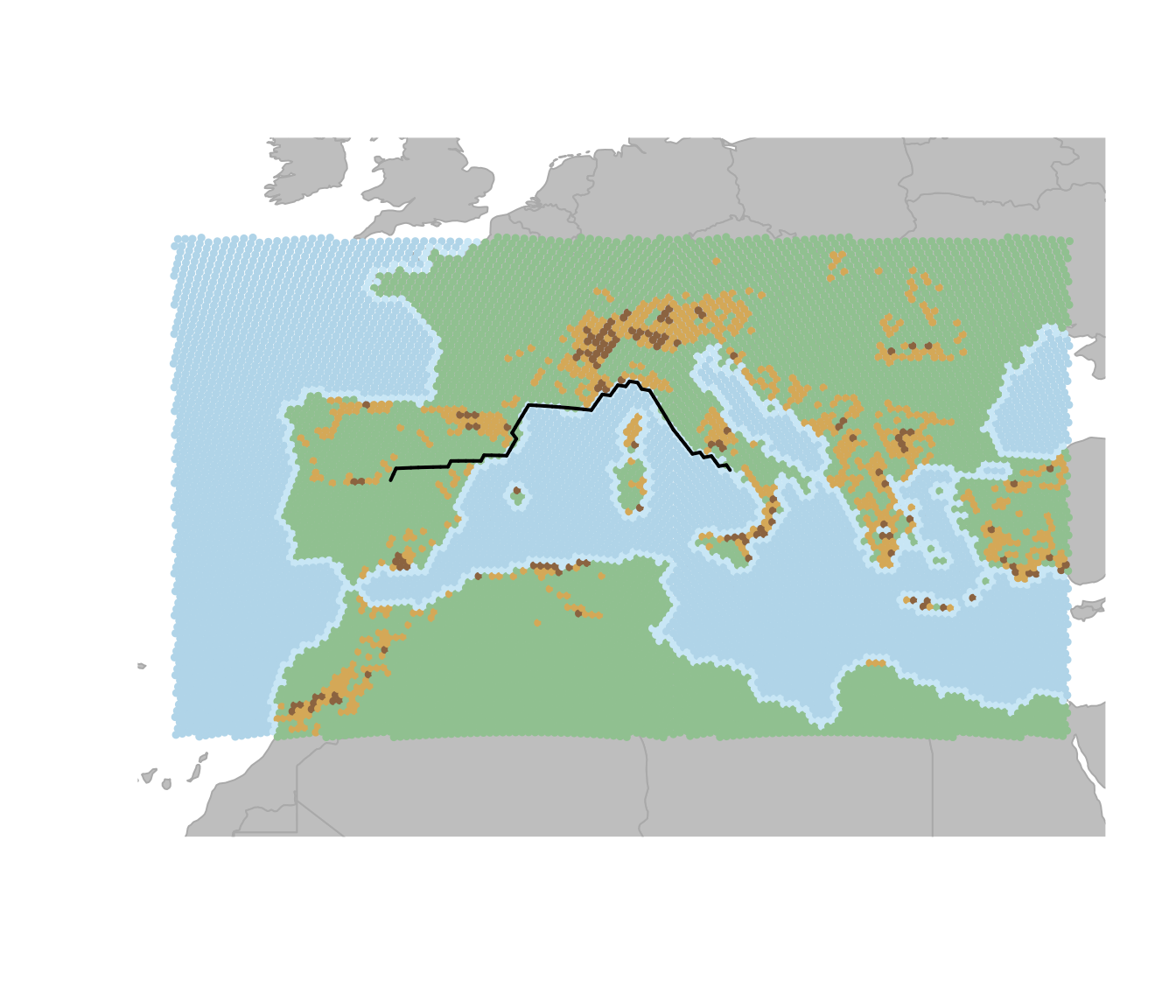

Now if we set the cost for coastal cells to be the same as for land cells, we can see that the least cost paths between different land areas tend to prefer crossing coastal cells over crossing rugged areas.

cost.rules <- data.frame(
  habitat = c("sea", "land", "rugged", "very_rugged", "coast"),
  cost = c(10, 1, 3, 10, 1)
)

hexGraph <- setCosts(hexGraph, method = "mean", attr.name = "habitat", cost.rules = cost.rules)

path <- dijkstraBetween(cities)
plot(hexGraph, reset = TRUE)
plot(path, col = "black", lwd = 2)

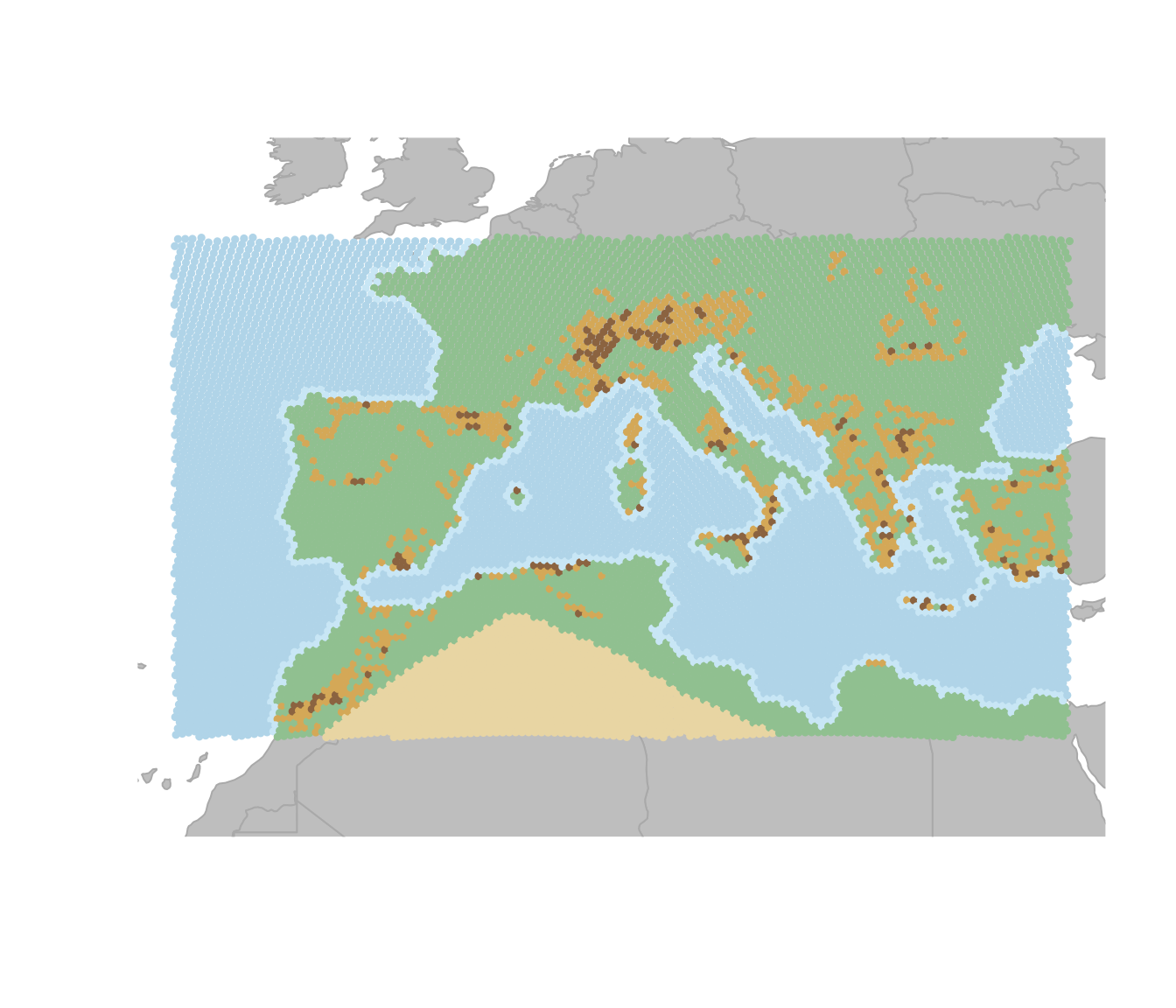

Assigning attributes from polygon layers

In the previous sections, we extracted environmental information from raster layers and assigned it to the nodes using assignByRaster. Another way geoGraph can serve as an interface between geographic information system (GIS) layers and geographic data is the function assignByPolygon. geoGraph uses sf objects to represent geographic objects such as points and polygons. By default, geoGraph uses the package rnaturalearth to provide continent and country outlines, but it is possible also to load custom GIS shapefiles with sf::st_read(). For example, we can load a shapefile of the Sahara desert in Northern Africa and extract information about which nodes in our graph fall within the desert. We can then reclassify those nodes as “desert” and update the habitat attribute accordingly. Finally, we can visualize the resulting graph with the new habitat classification.

# load the desert shapefile
desert <- st_read("shapefiles/desert_polygon.gpkg", quiet = TRUE)

# nodes inside the polygon get "desert" as their type, all others get NA
hexGraph <- assignByPolygon(hexGraph,
  layer = desert,
  attr  = "type"
)

# reclassify habitat: nodes with type "desert" become "desert",
node.attr <- getNodesAttr(hexGraph)
hab.new <- ifelse(
  !is.na(node.attr$type) & node.attr$type == "desert",
  "desert",
  node.attr$habitat
)

hexGraph <- setNodesAttr(hexGraph, attr.name = "habitat", values = hab.new)

# update colors and costs to include desert
colors <- data.frame(
  habitat = c("sea", "land", "rugged", "very_rugged", "coast", "desert"),
  color   = c("#b0d4e8", "#90c090", "#d4a857", "#8b6340", "#c8e6f5", "#e8d5a3")
)

# change the costs and colors associated with the land meta info
hexGraph <- setColors(hexGraph, colors)

cost.rules <- data.frame(
  habitat = c("sea", "land", "rugged", "very_rugged", "coast", "desert"),
  cost    = c(10, 1, 3, 10, 1, 5)
)

hexGraph <- setCosts(hexGraph, method = "mean", attr.name = "habitat", cost.rules = cost.rules)
plot(hexGraph, reset = TRUE)

Using different methods to calculate costs

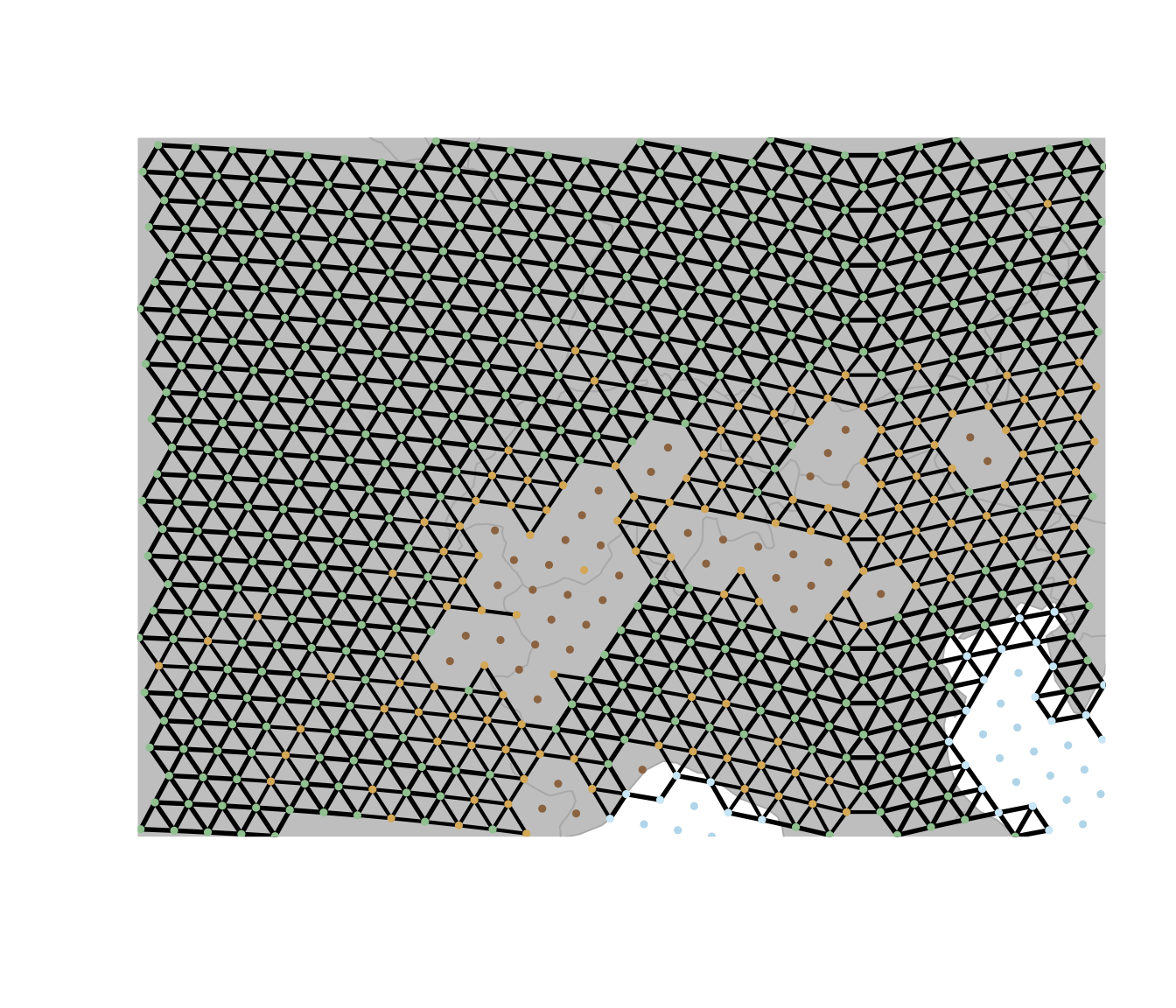

So far the costs for moving through different habitat types were defined by the mean of the costs associated with the different habitat types. However, the setCosts function allows to use different methods to calculate the costs for each edge based on the node attributes. For example, instead of using the mean, we could specify a custom function that takes the maximum cost of the two nodes connected by an edge, which would mean that the cost of moving through an edge is determined by the more difficult habitat type of the two nodes. This can be done by defining a custom function max.cost and then using it in the setCosts function with the method set to “function”. The resulting graph will have costs for each edge that reflect the maximum cost of the two nodes it connects. To visualize this better we zoom in on the Alps.

max.cost <- function(x1, x2) {
  pmax(x1, x2)
}

maxCostGraph <- setCosts(
  hexGraph,
  attr.name = "habitat",
  method = "function",
  FUN = max.cost
)

plot(maxCostGraph, edges = TRUE)

Combining costs

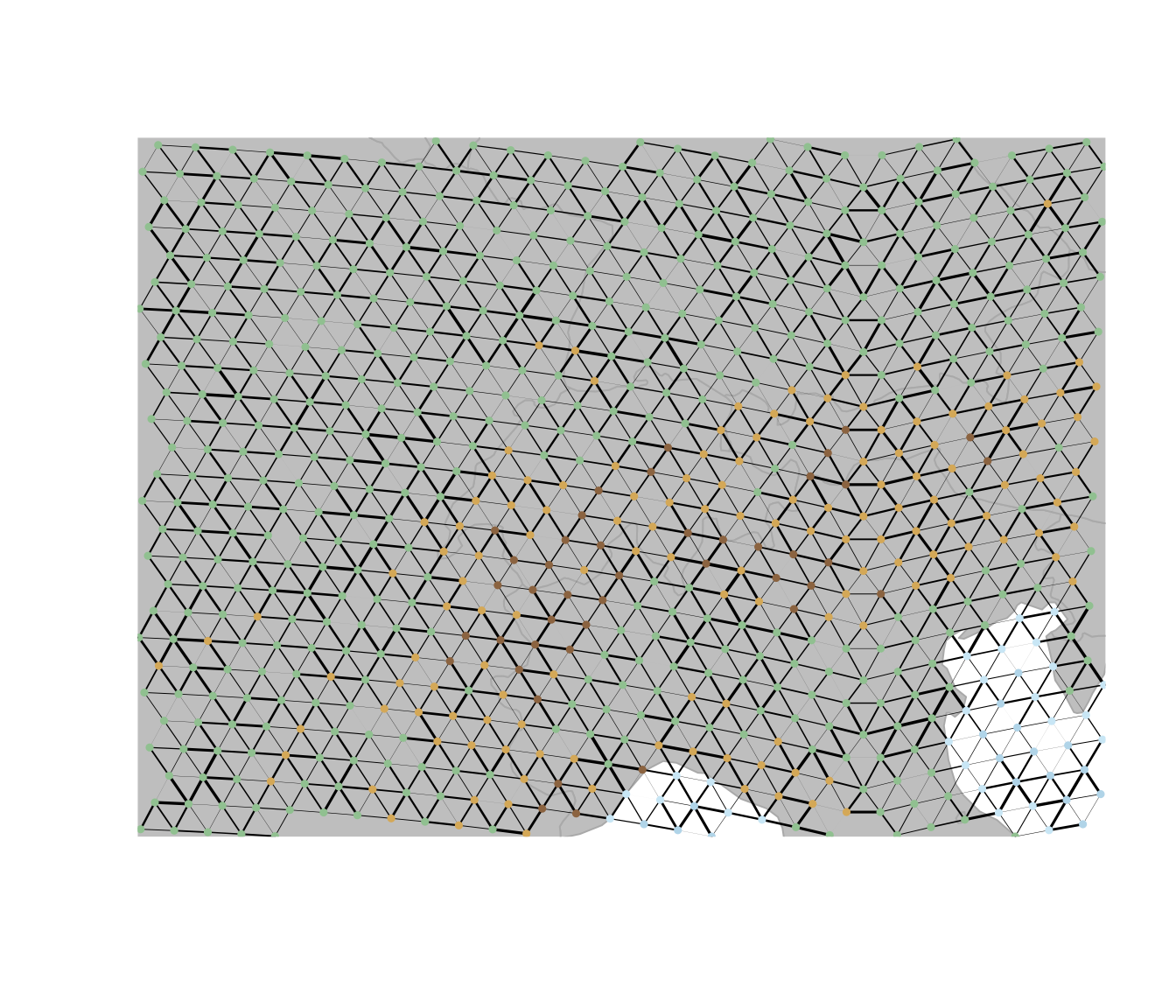

In many ecological applications, connectivity across landscapes depends on multiple environmental constraints rather than a single variable. In the previous sections we constructed terrain-based costs that capture differences in movement through sea, land, rugged, and very rugged areas. However, climatic factors can also influence movement and dispersal. To illustrate how multiple environmental layers can be incorporated into a connectivity model, we now add an additional environmental gradient: temperature, which in this example is a random variable that we assign to the nodes of the graph. The movement cost between two nodes can then be defined as a function of the difference in temperature between the two nodes, with a cost that increases as the temperature difference increases. The setCosts function is then used to apply this cost function to the graph based on the temperature values assigned to each node.

exp.cost <- function(x1, x2, cost.coeff) {
  exp(-abs(x1 - x2) * cost.coeff)
}

# create a set of node costs for temperature
temperatureGraph <- setNodesAttr(maxCostGraph,
  attr.name = "temp",
  values = runif(length(getNodes(maxCostGraph)))
)
temperatureGraph <-
  setCosts(
    temperatureGraph,
    node.values = getNodesAttr(temperatureGraph)$temp,
    method = "function",
    FUN = exp.cost,
    cost.coeff = 1
  )

plot(temperatureGraph, edges = TRUE)

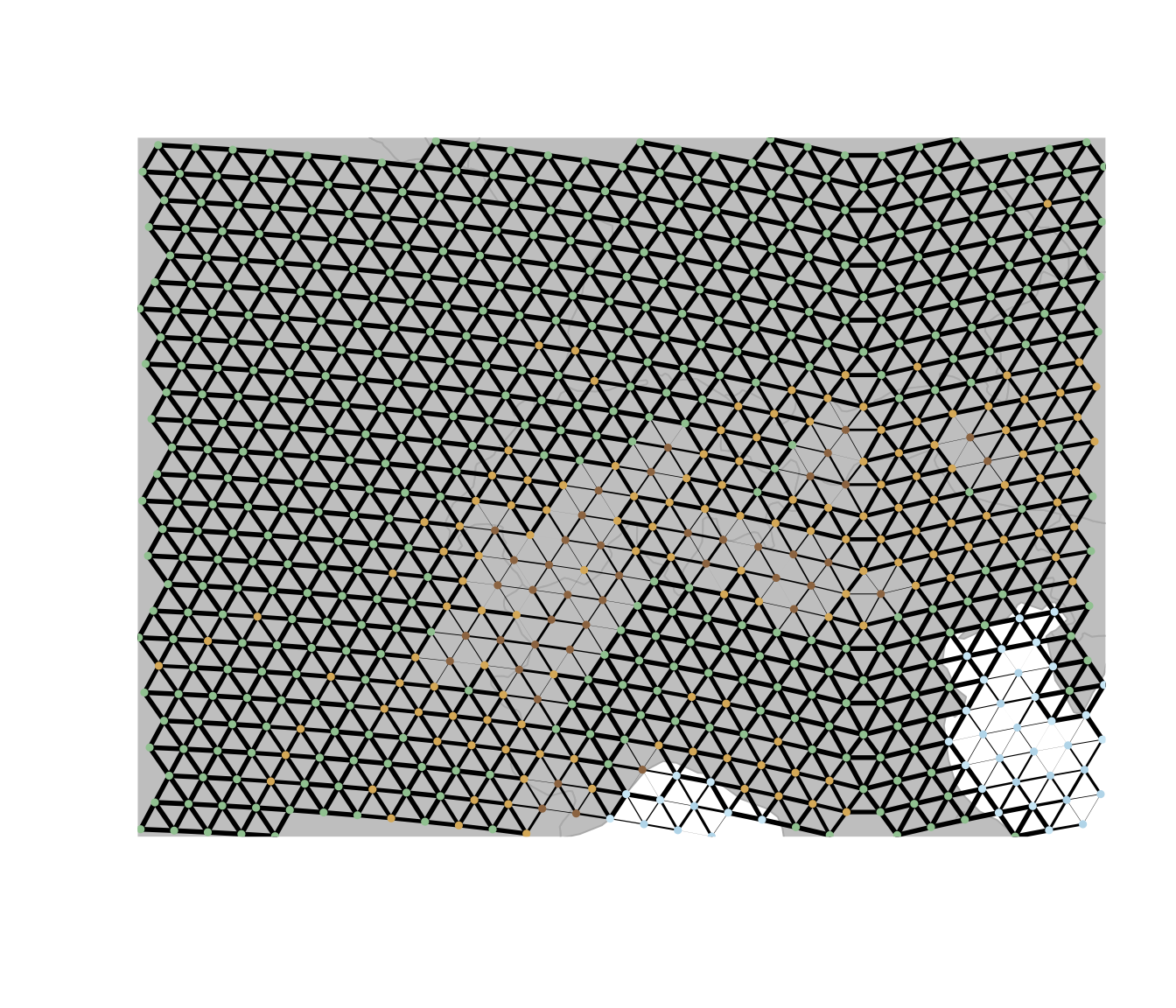

Now we want a combined cost that both captures the temperature as well as the terrain. For this we can use the combineCosts function, which allows to combine costs from two different graphs using a specified method (sum, product, or a custom function). Here we will use the prod method to combine the costs from the temperatureGraph and the maxCostGraph, which multiplies the costs from both graphs to create a new cost that reflects both the temperature and terrain constraints on movement.

combineCostsGraph <- combineCosts(temperatureGraph, maxCostGraph, method = "prod")

plot(combineCostsGraph, edges = TRUE)
