ggplot layer for a gPath

Adds a gPath (from dijkstraBetween() or dijkstraFrom()) to a ggplot as ggplot2::geom_sf() linestrings.

Usage

geom_gpath(
  data = NULL,
  mapping = ggplot2::aes(),
  stat = "sf",
  position = "identity",
  na.rm = FALSE,
  show.legend = NA,
  ...
)

Arguments

data

a gPath object.

mapping

aesthetics.

stat, position, na.rm, show.legend, ...

forwarded to ggplot2::geom_sf().

Value

a ggplot layer.

See also

Other ggplot_methods: autoplot.gData(), autoplot.gGraph(), geom_gdata(), geom_ggraph()

Examples

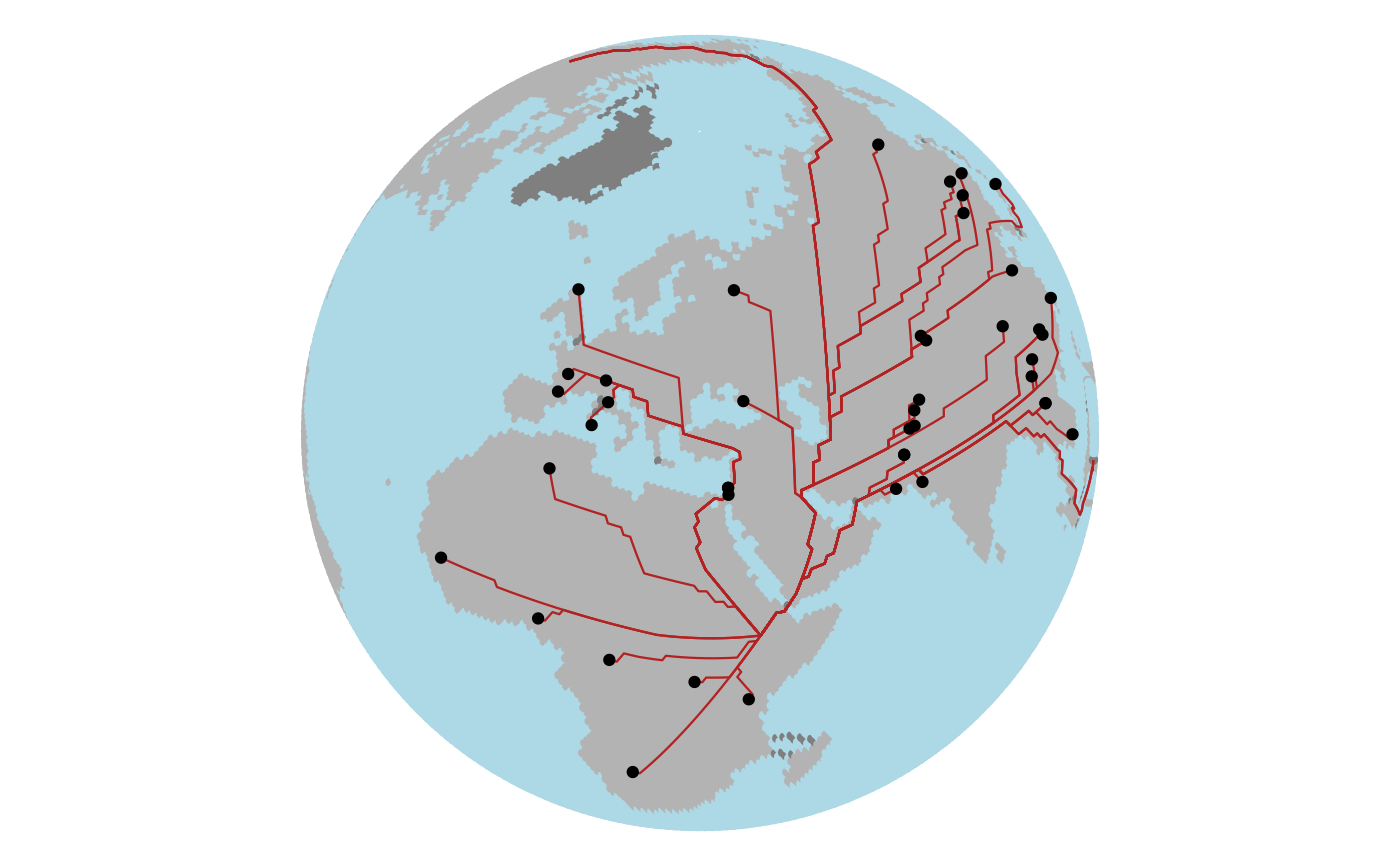

library(ggplot2)
addis <- list(lon = 38.74, lat = 9.03)
addis_node <- closestNode(worldgraph.40k, addis)
myPath <- dijkstraFrom(hgdp, addis_node)
ggplot() +
  geom_ggraph(
    data = worldgraph.40k, aes(color = habitat),
    edges = FALSE, size = 1, show.legend = FALSE
  ) +
  scale_color_manual(values = c(land = "grey70", sea = "lightblue", coast = "grey70")) +
  geom_gpath(data = myPath, color = "firebrick", linewidth = 0.4) +
  geom_gdata(data = hgdp, color = "black", size = 1.5) +
  coord_sf(crs = "+proj=ortho +lat_0=40 +lon_0=30") +
  theme_void()
